HOLZ-HER Edgebander AURIGA 1308 XL: Highest Degree of Automation with three Finishing Units

Highest degree of automation with three finishing units

Edgebander with efficient and automatic complete machining at a professional level while remaining compact and affordable.

Set-up processes with state-of-the-art NC servo-axes, making it unnecessary to open the machine hood. With the AURIGA 1308 XL (3 finishing units), HOLZ-HER has met this challenge. One reason why this machine is one of our top sellers. The high sales volume makes it possible to offer this machine at an unbeatable price/benefit ratio.


Technical Details

EdgeControl - simple and intuitive

HOLZ-HER PC control - designed to meet the high standards of tomorrow

Edge Control

18.5" Touch screen color monitor with 16:9 format. High performance control with simply operation for rational machine set-up and change-over.

  • 18.5" touch screen color monitor - standard feature.
  • Graphic user interface, all information displayed in plain text and/or graphic form.
  • Simple operation – rotating and swiveling control panel at eye height.
  • Programs are simple to call with program names and numbers.
  • Large program memory for all desired applications.
  • Individual selection of units with the functions as basic setting possibilities for nominal values, path points and tool corrections.
  • Service reports in clear text.
  • Individual management for up to ten users with password protection and individual authorization.
  • Network connectivity.
  • Online maintenance, rapid exchange of data with HOLZ-HER service department.
  • Barcode interface

Edging feed

Edging feed
Edging feed

Fully automatic, user-friendly feed of cut-length and coiled edging; conversion without tools. Gentle material handling with transport belts for edge feeding and light barrier for edging recognition.

Jointing cutter unit - 45 (60) mm

Jointing cutter

Cut edges often have small tears in the top layer. The jointing cutter unit ensures perfect glued surfaces and prepares the panels for the gluing process. Equipped with ProLock quick-change flange. Including height adjustment for optimum utilization of cutters.

  • Optionally available with working height of 60 mm.

The most flexible glue application system on the market

Heat-up, glue change and cleaning require only 3 minutes each

No other glue application system offers this flexibility with this energy efficiency and cleanliness. HOLZ-HER thin film technology makes this gluing system an all rounder for craftsmen and industrial users. Visual zero joints with PUR glue – allowing use in wet areas – are natural for HOLZ-HER customers.

Starting with the state-of-the-art, high gloss edging right up to solid wood edging with extremely high cross sections, HOLZ-HER remains unequaled in terms of appearance, regardless of the material. HOLZ-HER sets the trends for tomorrow today.

Pressure unit

Pressure unit
Pressure unit

High quality 3-roller pressure unit for pressing edging against panel cleanly and forcefully. First roller with motor drive and pneumatic application control. Two subsequent pressure rollers.

Pneumatic trimming unit - 60 mm

Pneumatic trimming unit - 60 mm
Pneumatic trimming unit - 60 mm

For straight or chamfered trimming on thin edging; a standard feature allows this unit to be pivoted to 10 degrees pneumatically. High quality version with stable cast iron pillars.

Sawing motors each with two guides for precisely trimming off protruding edging.

Cutter unit - pivoting

Pneumatic cutter unit
Pneumatic cutter unit

Multifunction cutter unit for flush cut on edging with thickness up to 8 mm, radiuses up to 3 mm, pivots 0-5 degrees. Including diamond tipped tools.

Further equipment:

  • Integrated chip collection in tool.
  • ProLock system.
  • Also available with four NC servo-axes

Copy cutter unit - 60 mm

Copy cutter unit
Copy cutter unit

Corner rounding unit for processing corners with edge thickness up to 3 mm. Tools for radiuses up to 3 mm and chamfers up to 45 degrees – postformed profiles possible.

  • Diamond tipped tool for long service life.
  • Integrated chip collection in tool.

Scraper unit

Scraper unit
Scraper unit

Perfect finish – generous finishing area.

  • For perfect smoothing of radiuses or chamfers on plastic edging.
    Also available with four NC servo-axes

Flat scraper with plunge control

Flat scraper
Flat scraper

Perfect finishing – generous post-machining area for up to three finishing units (depending on model).

  • The application-controlled flat scraper removes all glue residues, which are then blown off the panel by the integrated blast nozzles.

Flat scrapers with pre and post-sensing

Flat scrapers with pre and post-sensing for edgebanding

Clean surface finishing with pre- and post-sensing for high feed rates. 2 HW cutting edges, for use on 4 sides. Completely eliminates all manual finishing. Both units can be lifted automatically for special applications. Can be selected optionally in lieu of the standard buffing unit.

Buffing unit

Buffing unit
Buffing unit

Perfect finishing – generous post-machining area for up to three finishing units (depending on model).

  • Polishing for maximum gloss; for complete finishing.

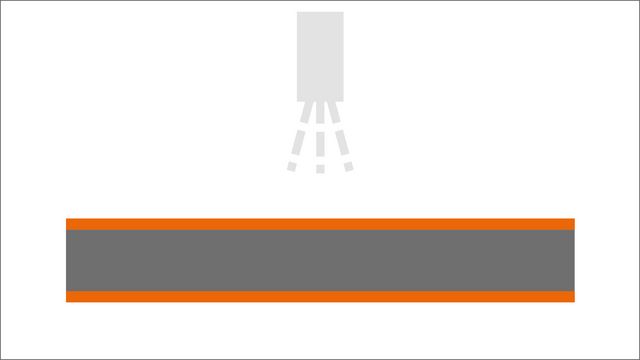

Front and rear spraying units

Front and rear spraying units
Front and rear spraying units

A release agent is sprayed on to a precisely defined area by special spray nozzles in the entry area. This prevents any glue or contamination residues from adhering These glue and contamination residues are removed reliably by the spraying unit (for cleaning agent) in the discharge area in combination with the buffing unit (available as option for AURIGA 1308 XL).


Options for extension

Energy savings made easy

The intelligent ECO Mode energy management for HOLZ-HER edgebanders not only helps preserve our environment - it also saves you money.

Learn more


An integrated network of machines ensures production with maximum efficiency

Maximum Efficiency with Holz-Her Machine Networking

HOLZ-HER realizes your production ideas within 20 minutes from the first mouse click to finished furniture with seamless machine networking.

Learn more


Are you still "rolling" glue or are you already saving?

Are You Already Saving?

Are you still "rolling" glue or are you already saving? Savings of up to € 1,000 / year with our patented Glu Jet nozzle system.

Learn more


References

A strong team: The PRO-MASTER 7125 and AURIGA 1308XL

Carpenter Kindle has a new AURIGA 1308XL

Craftsmanship at the highest level - This is the demand the Kindle Carpentry Shop in Lahr places on itself and has also actively pursued for over 85 years. The objective: Giving your home a vital quality to make you feel comfortable.

To continue to keep up with the state-of-the-art, the Kindle Carpentry Shop decided last year to purchase a PRO-MASTER 7125 CNC machining center from the machine manufacturer HOLZ-HER. Convinced of the quality of the 5-axis CNC machine, the company decided to also replace its UNO 1302 edgebander from HOLZ-HER, which has provided good service for many years, with a new AURIGA 1308XL from the same manufacturer. At this carpentry shop the PRO-MASTER and the AURIGA form a strong team for machining wood. The AURIGA 1308XL is a special type of edgebander, providing complete efficient and automatic machining while taking up a minimum of space in the workshop.

The Kindle Carpentry Shop produces residential furniture, kitchen and bath furnishings, staircases and much more while also offering expert presentations on subjects such as health and sleep. After 10 years of experience with this subject, the carpentry shop is an expert in this field and is pleased to offer professional sleep counseling. According to the motto “feel and try”, a sleep studio and functional model kitchens round out the carpentry shop’s extensive range.

The Kindle Carpentry Shop is now perfectly equipped to remain an excellent contact partner in the future for questions regarding ideas about furniture and luxurious interior furnishings in the vicinity of Lahr-Sulz.

Further images

Carpenter Kindle has a new AURIGA 1308XL
Carpenter Kindle works with a PRO-MASTER 7125 from HOLZ-HER
Carpenter Kindle works with a PRO-MASTER 7125 from HOLZ-HER

CNC and edgebanding for optimum results

HOLZHER customer reference Wieland from Gernsbach is satisfied with CNC and edge processing

The Wieland Carpentry Shop in Gernsbach is proud of its young, dynamic and competent team. In 2011 the carpentry shop decided to purchase an AURIGA 1308, from HOLZ-HER’s line of edgebanders. The AURIGA offers efficient and automatic processing of edging at a professional level while its compact design takes up minimum space in the shop.

Based on its positive experience with HOLZ-HER, the carpentry shop decided to invest in another HOLZ-HER machine in 2017. This machine was a 5-axis PRO-MASTER 7125 CNC machining center. This CNC machine offers virtually unlimited possibilities for machining wood, panels and synthetic materials. Above all, the mature dynamics of the gimbal mounted, 5-axis head distinguish this machine, making it perfect for meeting the demands of the carpentry shop.

Further images

Good experience with HOLZ-HER CNC machine PROMASTER 7125 and edge banding machine Auriga 1308
Good experience with HOLZ-HER CNC machine PROMASTER 7125 and edge banding machine Auriga 1308
Good experience with HOLZ-HER CNC machine PROMASTER 7125 and edge banding machine Auriga 1308

Made to measure right down to the last detail

References Riedinger from Bühl is very satisfied with the edgebander and the CNC machine

The Company “Massivholz-Möbel GmbH Riedinger” [Riedinger Solid Wood Furniture] in Bühl produces high quality, solid wood furniture to meet the desires and ideas of their customers. The company uses a number of various machines from HOLZ-HER. These include the AURIGA 1308XL edgebander as well as a 5-axis PRO-MASTER 7225 CNC machining center for production of furniture at the Riedinger Company.

The AURIGA 1308XL offers compact, but still extremely efficient, complete processing for edging with three finishing attachments. The PRO-MASTER 7225 CNC machining center offers the company innovative machine design with a range of performance including five interpolating axes to meet all production requirements.

Custom work right down to the smallest detail – with the HOLZ-HER machines now in use, this is more than just a motto for the Riedinger Company.

Further images

The CNC machining center Pro-Master 7225 at the HOLZHER reference customer Riedinger
The CNC machining center Pro-Master 7225 at the HOLZHER reference customer Riedinger
The CNC machining center Pro-Master 7225 at the HOLZHER reference customer Riedinger

"Think thank" for tailor-made kitchen with perfect joints

Our reference customer Marten with the edgebanding machine AURIGA 1308XL

The Marten Carpentry Shop in Emden serves as a think tank for its customers. This motto serves to describe the detailed discussions at the beginning of each consulting process. Topics include, for example, the degree of creativity permissible in designing the furniture and how problems can be solved in a spatial situation as well as to what extent the customer’s personal style can be integrated into the finished product. This extensive and qualified consultation at the Marten Cabinetmaking and Kitchen Workshop forms the basis for the company’s satisfied clientèle. This cabinet-making ship focuses on custom kitchens from planning to production of the furniture and furnishings.

Machines at the highest technological level as used to ensure perfect implementation. During the past few years the company’s success has resulted in continuous growth, making the present premises too small. For this reason the carpentry shop moved to a new production and presentation building. The front area contains a modern show room, while the rear area houses the new production facilities with the new AURIGA 1308 XL edgebander from HOLZ-HER, to meet the increasing customer demands for high quality edging and allow quick reaction. The AURIGA replaces its predecessor, a UNO 1302, and features programmed conversion at the touch of a button. In addition to the new AURIGA, a vertical HOLZ-HER panel saw has been in use for some time. With this equipment the Martin Carpentry Shop is perfectly equipped.

HOLZ-HER wishes great success at the new location.

"We live for woodworking" - A Motto und now a machine that suits with it: The AURIGA 1308 XL

Our reference customer Spitzmüller und Klein on the road to success with the AURIGA 1308 XL

For 15 years, Michael Spitzmüller and Siegfried Klein have been successful in the woodworking industry. Besides high quality furniture the company also lays wooden floors and accepts every kind of wood and glas working. In 2016 the joinery decided to extend her machinery and bought an edgebander AURIGA 1308XL from the HOLZ-HER company.

One reason why this machine is one of our top sellers. The high sales volume makes it possible to offer this machine at an unbeatable price/benefit ratio. Besides the Glu jet technology the AURIGA 1308XL also offers Set-up processes with state-of-the-art NC servo-axes, making it unnecessary to open the machine hood.

We wish the Spitzmüller and Klein joinery a successful work with the new machine.

Convincing quality due to the AURIGA 1308XL from HOLZ-HER

One more satisfied reference customer from HOLZ-HER - the edgebander AURIGA 1308XL convinced

In 1983 Mr. Bochert founded the Borchert joinery and since then, his know-how about woodworking increased. Since 2010 Michael Borchert assumes the responsibility for the family business. In 2016 the company decided to count on the experience and quality assurance of Holzher and invested in an edgebander AURIGA 1308XL.

One reason why this machine is one of our top sellers. The high sales volume makes it possible to offer this machine at an unbeatable price/benefit ratio.

“Snooze à la Carte” with high quality water beds

The Kobe Carpentry Shop in Reutlingen uses a variety of HOLZHER machines

The Kobe Carpentry Shop in Reutlingen has been a loyal HOLZ-HER customer for many years. This year, proprietor Michael Kobe and his team purchased a new LUMINA 1380 edgebander. Following an AURIGA 1308 edgebander, a PRO-MASTER 7018 CNC machining center and a CUT 6120 horizontal pressure beam saw this is the fourth machine from the quality manufacturer HOLZ-HER in Nürtingen. Master Carpenter Tobias Ernst is enthusiastic about the new high tech edgebander: The LUMINA has a change-over station to ensure perfectly invisible joints with laser edging as well as with PUR glue without requiring a great amount of time to change attachments.

This three-man shop in Reutlingen has specialized in building water and box spring beds. It has adopted the motto “Snooze à la Carte“. The carpentry shop works with a state-of-the-art measuring system to ensure custom sleeping comfort at the highest level. The components and frames are produced in the company’s own workshop to customer specifications. In addition to high quality beds, in the meantime the carpentry shop is now producing more and more exclusive bedroom furniture and interior finishing elements. The carpentry shop’s products can be viewed in their exhibition rooms in Böblingen and Reutlingen.

Further images

Loyal HOLZHER customer with LUMINA 1380 edgebander: Kobe in Reutlingen
Reference customer for HOLZHER LUMINA edgebander: Kobe in Reutlingen
Loyal HOLZHER customer Kobe in Reutlingen with PRO-MASTER 7018 CNC machining center

Caribbean Flair with high performance HOLZ-HER machines

HOLZ-HER reference customer in the Caribbean with edgebander, panel saw and CNC machining center

HOLZ-HER’s excellent reputation as a producer of high performance machines has reached the Caribbean. On the small Caribbean Island of Saint-Barthélemy, belonging to the lesser Antilles and included in the French overseas territories, the new production facilities built by the Carpentry Shop Gaylord Dessomme Ebenisterie d’Art has been equipped with machines from the Nürtingen machine manufacturer.

These machines include a PRO-MASTER 7125 Black Edition, distinguished particularly by the mature dynamics of its 5-axis gimbal-mounted head and high tech processor. In addition the carpentry shop now has an AURIGA 1308XL PUR Black Edition with three finishing attachments. A TECTRA 6120 classic pressure beam saw was also installed.

The Carpentry Shop Gaylord Dessomme Ebenisterie d’Art has specialized particularly in production of interior and exterior furniture and is now well equipped with its new HOLZ-HER machine park.

Further images

Satisfied HOLZ-HER customer with Auriga 1308XL Black Edition edgebander
Satisfied HOLZHER customer with TECTRA 6120 classic horizontal panel saw
HOLZHER reference customer with Pro-Master 7125 Black Edition - the high performance CNC processing center

High quality Russian work supported by HOLZ-HER

HSR is one of Russia’s leading manufacturers of furniture and interior furnishings. The company’s headquarters is in Khimki, located to the north of Moscow. From here the company manages seven other branch facilities in Russia. The range of materials to be processed is broad, going from solid wood, artificial stone and veneer to synthetics and laminate chipboard. This high quality Russian manufacturer focuses on production of equipment for offices and retail stores as well as residences and hotels.

In the area of furniture and interior furnishings HSR has made a name for itself and has more than enough well known references for proof. The company’s satisfied customers include LG, Swatch, Apple, Louis Vuitton and World Disney as well as Procter & Gamble. From planning to custom production the company supervises its customers, ensuring optimum quality from design to complete functionality.

For its precision, high quality work, the company uses machines form the Swabian quality manufacturer HOLZ-HER. The machines in use include a 5-axis PRO-MASTER CNC machining center and an AURIGA 1307 XL edgebander.

The video shown is an excerpt from an image video made by HSR. The complete video can be viewed at the HSR Company website at

25 years of innovative woodworking in Tuttlingen, Germany

Satisfied reference customer for HOLZ-HER, Riess Carpentry Shop  - Evolution 7405

The Riess Carpentry Shop in Tuttlingen, Germany will be celebrating its 25th anniversary in the near future.

For some years already the carpentry shop owned by Oliver Harscher has worked successfully with various HOLZ-HER machines, such as the vertical 1215 panel saw, the AURIGA 1308 XL edgebander and now the vertical CNC EVOLUTION 7405. This perfectly matched line of HOLZ-HER products makes it possible to produce high quality furniture to satisfy the high demands of its enthusiastic customers.

We wish you maximum success and continuing successful cooperation!

Further images

Satisfied with vertical CNC from HOLZ-HER - Riess Carpentry Shop in Villingen
Super experience with the HOLZHER CNC EVOLUTION 7405 - work in extremely limited space in vertical
Satisfied HOLZ-HER customer - Riess Carpentry Shop in Villingen - Auriga 1308XL edgebander

Further information

Downloads

Simple, fast and sustainable: more details in a downloadable PDF document.

AURIGA brochure (PDF, 3 MB)

Technical data

Open table
