Edgebander ACCURA 1554: The compact solution in the high end range

Complete professional machining with all required machining units

More power, even more stability as well as a machine design which sets accents – the ACCURA 1554 from HOLZ-HER redefines edgebanding. Requiring only 6.5 meters of floor space, the ACCURA 1554 offers professional complete processing with all required machining units.

The new ACCURA series was developed by HOLZ-HER for high quality artisans and industrial parts producers. This modular system provides flexible adaptation to customer requirements and future furniture trends.

Prices
x

Different requirements - different prices

The price of a HOLZHER machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice
x

Personal advice – for higher productivity and greater efficiency

Together with your HOLZHER expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local HOLZHER expert will be happy to discuss all further details with you.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.

Technical Details

iTronic for intelligent automation

Adaptive package for intelligent automation

iTronic operating components

1. Adaptive trimming blade

Full adaptive trimming blades with automatic pressure adaptation to match edge thickness and height. Your advantages:

  • Always the right pressure for different types of edging
  • Prevents unnecessary vibration
  • Reduces wear

2. Adaptive pressure unit

The contact pressure of the individual pressure rollers is adapted perfectly to the application by an intelligent pneumatic system. Your advantages:

  • Reduces reject quotas to a minimum
  • Eliminate sample workpieces
  • Optimum machining results even for continuously changing applications

3. Automatic glue quantity control

Automatic, requirement-adapted control of glue quantity with program selection: Always optimum glue application for:

  • Various types of panels, e.g. chipboard or MDF
  • Various panel thicknesses
  • Various feed rates
  • EVA or PUR glue
  • Adaptation to processing parameters for glue from different manufacturers

4. Automatic cleaning routine

Integrated, fully-automatic purging routine for PUR glue at the touch of a button on the control. This process completely purges the machine, full automatically, with the correct quantity of cleaner, at the right temperature and contact pressure. (Cleaning is required after 48 h = PUR reaction time).  Your advantages:

  • Best system on the market
  • PUR glue always under control
  • Avoids errors during cleaning operation

5.  Remaining glue quantity indicator

The remaining quantity of glue as well as the running meters that can still be processed are automatically monitored by a special sensor in the system and displayed to the operator on the control. Your advantages:

  • Operator knows how many running meters can still be produced at all times
  • Professional supervision of the cleaning process
  • Optimization of remaining quantity of glue in system at time of cleaning process.

Edge Control

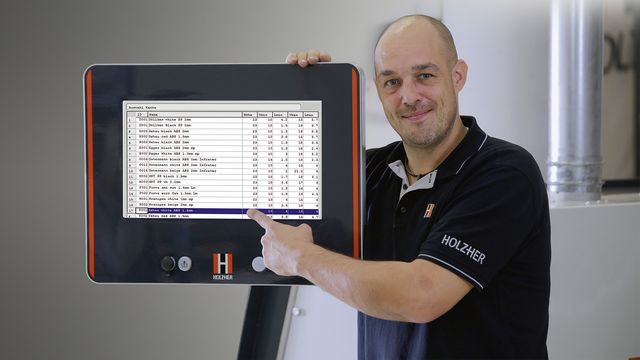

HOLZ-HER PC control - designed to meet the high standards of tomorrow

Edge Control

18.5" Touch screen color monitor with 16:9 format. High performance control with simply operation for rational machine set-up and change-over.

  • 18.5" touch screen color monitor - standard feature.
  • Graphic user interface, all information displayed in plain text and/or graphic form.
  • Simple operation – rotating and swiveling control panel at eye height.
  • Programs are simple to call with program names and numbers.
  • Large program memory for all desired applications.
  • Individual selection of units with the functions as basic setting possibilities for nominal values, path points and tool corrections.
  • Service reports in clear text.
  • Individual management for up to ten users with password protection and individual authorization.
  • Network connectivity.
  • Online maintenance, rapid exchange of data with HOLZ-HER service department.
  • Barcode interface.

6-Fold edging feed

Simple handling – high flexibility with 6-fold edging feed
Simple handling – high flexibility with 6-fold edging feed
Simple handling – high flexibility with 6-fold edging feed

Maximum flexibility with 6-fold edging feed

The automatic 6-fold edge feeder offers the advantage of flexibility to users with continuously changing edging material as well as those using the same edging continuously. The automatic chute change feature ensures that edging is always available, eliminating valuable setup times. Including seventh auxiliary chute for feeding in cut-length edging as well as 6-fold edging carriage with arresting universal rollers.

  • Available on all ACCURA models (optional)

SYNCHRO edging feed

SYNCHRO edging feed
SYNCHRO edging feed
SYNCHRO edging feed

Edging magazine SYNCHRO drive.

With its synchronous adaptation to the feed rate, this edging magazine guarantees short intervals between workpieces and simultaneously optimizes edging protrusions.

Small feed angle thanks to nozzle design - easy feeding of solid wood edging up to 20 mm.

Jointing cutter

Jointing cutter

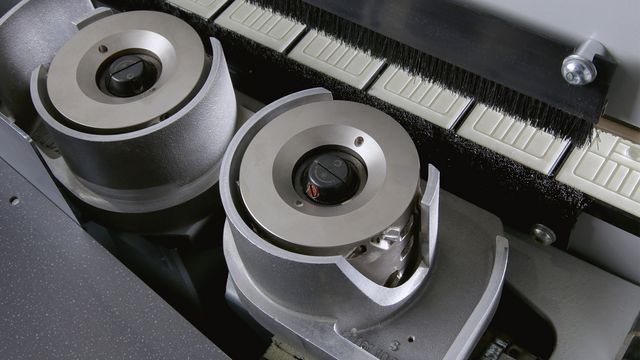

Cut edging often has small tears in the top layer. The jointing cutter unit ensures perfect glued surfaces and prepares the panels for the gluing process. Equipped with two 70 mm dia. diamond tipped cutters with AirStream technology (HOLZ-HER / LEUCO Patent).

  • Including height adjustment for optimum utilization of cutters.

With symmetrical diamond tipped cutters (dia. 100 mm) for maximum joint quality and long service life. Automatic height adjustment with two NC servo-axes (optional).

  • Standard features on the ACCURA 1558 performance

Glu Jet automatic - glue application system

Heat-up, glue change and cleaning require only 3 minutes each

Automatic replenishment



  • The pressure cylinder presses the cartridge or granules against the heater elements. After reaching a certain position, the sensor sends a replenishment signal to the control. As long as glue is being applied to a workpiece, charging is delayed until the work is finished. The pressure cylinder retracts automatically, a new cartridge or fresh granulated material is gravity fed from the cartridge supply shaft into the heating chamber where it is again pressed against the heating elements.
  • Purging hole for automatic cleaning system – e.g. cleaning out PUR glue.

The Glu Jet automatic is attached to a set-up carriage alternating with the LTronic unit as a glue application system with automatic change-over. Change-over is accomplished within a maximum of two minutes by a high precision interface with HSK chuck and CNC technology.

Motor-driven pressure unit

Motor-driven pressure unit
Motor-driven pressure unit

Synchronously driven pressure unit with automatic adaptation to feed rate and NC servo-axes for motor-driven adjustment to correct edge thickness. Straight and tapered pressure rollers for perfectly glued joints.

Trimming unit

Most powerful trimming unit in its class
Most powerful trimming unit in its class
Most powerful trimming unit in its class

Most powerful trimming unit in its class – edge cross-section 20 x 65 mm. With hardened linear guides for high precision trimming results up to edge thickness of 20 mm.

Cutter unit

Heavy-duty floor-mounted unit with shock-absorbing bearing
Heavy-duty floor-mounted unit with shock-absorbing bearing
Heavy-duty floor-mounted unit with shock-absorbing bearing

Heavy-duty floor-mounted unit with shock-absorbing bearing and large sensing rollers for perfect results even at high feed rates.

100% repetition accuracy at the touch of a button based on zero-clearance mechanisms and six high precision NC servo-axes. Horizontal sensing with angular sensing rollers with chemically applied nickel plating developed especially for processing modern, high gloss edging.

  • In multifunction package with multistage tool (optional).

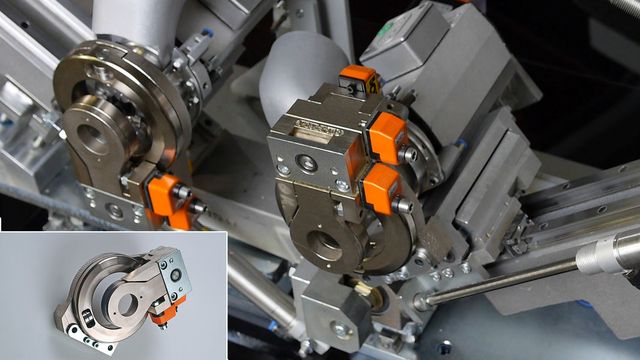

Shaping cutter unit

Copy cutter unit with four NC servo-axes as standard feature
Copy cutter unit with four NC servo-axes as standard feature
Copy cutter unit with four NC servo-axes as standard feature

Shaping cutter unit with four NC servo-axes as standard feature

Uncompromising shaping cutter unit for workpieces with thicknesses up to 60 mm.

Unit adjustment on linear guides With standard blast nozzles in front of sensing rollers to blow away chips in front of sensing areas. Including shelf program for optimum processing of shelves with rounded edges.

Automatic pendulum sensor copies rear without material protrusion and leaves the optimum edge protrusion for the longitudinal edge for subsequent machining with the radius scraper.

  • In multifunction package with revolving tool magazine (optional).

Scraper unit

100 percent repetition accuracy at the touch of a button
100 percent repetition accuracy at the touch of a button
100 percent repetition accuracy at the touch of a button

100% repetition accuracy at the touch of a button based on zero-clearance mechanisms and six high precision, fully digital NC servo-axes.

Including high gloss package for exact adjustment of tool depth when using high gloss panels with protective foil as well as sensing rollers with chemical nickel plating.

  • In multifunction package with 5 compartment, revolving tool magazine (optional).

Flat scrapers with pre and post-sensing

Flat scrapers with pre and post-sensing for edgebanding

Clean surface finishing with pre- and post-sensing for high feed rates. 2 HW cutting edges, for use on 4 sides. Completely eliminates all manual finishing. Both units can be lifted automatically for special applications.

Spraying devices

Front and rear spraying units
Front and rear spraying units

Spraying units for parting agents and cleaning agents for feed and discharge area. Anti-static, coolant and lubricant – electronically controlled by special nozzles - for a perfect edge finishing (optional).

Buffing unit

Polishing for maximum gloss; for complete finishing.
Polishing for maximum gloss; for complete finishing.

Polishing for maximum gloss; for complete finishing. Standard setup.

  • Also available as oscillating version (optional)
