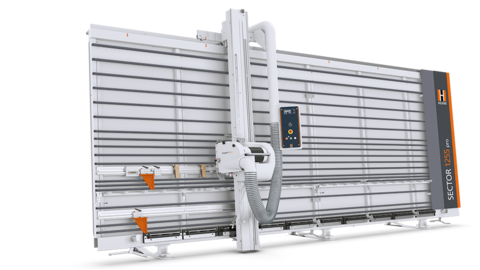

Vertical panel saw SECTOR 1255: We have done a lot of hard work, to make your work easier!

Vertical panel saw from Holzher - easy panel handling and sawing

“This vertical panel saw allows one-man operation from panel storage to a finished, precisely cut section.”

The wall saw SECTOR 1255 is available in highly varying frame versions with cutting lengths of 4,300 mm to 6,300 mm and cutting heights of 1,900 to 2,200 mm. The cutting depth is 60 mm. Special lengths up to 8,300 mm are available on request.

The range of applications for HOLZ-HER circular panel saws can be extended as required with genuine HOLZ-HER accessories. For example with the HOLZ-HER patented Super Cut prescoring system. This system operates with two scoring blades to score laminated panels ensuring tear-free edge quality right down to one tenth of a millimeter.


Here is what the HOLZ-HER SECTOR 1255 offers

Cutting optimization with Opti-Base V-Cut
Our patented SuperCut prescoring system

Technical Details

Cut optimization with Opti-Base V-Cut

Cutting optimization with Opti-Base V-Cut

Cut optimization – Step-by-step instructions for effective panel cutting

With the professional OptiBase V-Cut cutting optimization feature from HOLZ-HER, you always get the best optimization result thanks to perfect material utilization. Clearly arranged user surface and 10” touch screen for simple, quick operation and management of orders, material and parts lists. The label printer for HOLZ-HER machines, which is included in the package, ensures clear identification of parts.

The way to support cutting optimization

  • The optimization software for vertical panel cutting saws means you can optimize your cutting plans effortlessly.
  • Waste material is significantly reduced and professionally managed through labeling.
  • The choice is yours – you can either import the cutting plans created in your office via network connection / USB or enter them directly on the touch screen.
  • Perfect material utilization and maximum yield thanks to intelligent software.

Your benefits

  • Importing parts lists from various branch programs (Cabinet Control, Imos, OSD, CSV interface, etc.)
  • Writing parts lists in the office incl. Edging / Coverings / Oversize dimensions / Production sequence / etc.
  • Printing labels with all known information such as: Data matrix / Com. / Dimensions / Edgings / Coverings / etc.
  • Fast handling at machine, because optimization can be accomplished previously in the office and the monitor shows all data and work steps
  • Remnants are managed and booked (remnant store also completely active)
  • Programmable remnant store for panels and coverings
  • Network connectivity (machine can be integrated into network so that all remnants are also known in the office and optimized results can be displayed directly on machine.)
  • Plug to Play

Further information on cut optimization with Opti-Base V-Cut

Download

Prescoring for precision cuts

SuperCut is the patented HOLZ-HER prescoring system

SuperCut is the patented HOLZ-HER prescoring system. It provides ready-to-glue cuts with just one basic adjustment.

  • Two carbide blades score the surface of coated panels exactly to the width of the saw blade.
  • The circular saw blade then cuts the panel without chipping the hard, brittle or fibrous top layer.
  • The result is a smooth edge for further processing.
  • SuperCut can be adjusted easily on a dimension scale.
  • SuperCut can be retrofitted at any time on all SECTOR panel saws.

Top and bottom sawing beams

Saw bar above with pneumatic locking, can be operated by the control panel at the press of a button.
Saw bar above with pneumatic locking, can be operated by the control panel at the press of a button.

Top and bottom sawing beams with pneumatic arrest, can be operated from the control panel at the touch of a button. Including automatic interface detection for vertical cut.

Sawing unit for horizontal cutting

Saw unit including pneumatic locking for horizontal cutting

Sawing unit including pneumatic arrest for horizontal cut and electrical fine adjustment of measurement directly on the control panel.

Digital longitudinal stop with fine adjustment

Longitudinal stop digital with fine adjustment

Digital dimension display for vertical cut, including fine adjustment of hardened linear guide (optional).

GeoMetric angle cutting attachment

Angle cutting device GeoMetric With the mobile angle cutting device, cutting angles up to 45 ° can be carried out in a simple way

The mobile angular cutting device allows angular cuts up to 45° to be completed easily. For this purpose simply clamp the angular cutting device to the saw and set the angle in degrees. Two adjustable vacuum units hold the panel in place. Then cutting can be accomplished in the vertical or horizontal direction. A simple conversion feature allows the angular cutting unit to be attached on the left or right side of the cut.

Strip Stop

The strip stop ensures repeatable cutting to the width of the workpieces.

The strip stop ensures a uniform cut to the width of the workpiece. Once set - every cut is the same

SECTOR 1255V for Alucobond®, Dibond®, etc.

The SECTOR 1255V for composites like Aluconbond, Dibond etc.
Clean composites with the vertical panel saw SECTOR 1255V from HOLZ-HER.
Clean composites with the vertical panel saw SECTOR 1255V from HOLZ-HER.

Brilliant solutions for composite materials

Composite materials are a consistent part of modern architecture. The innovative products provide inspiration both in new buildings and in renovated old buildings. These materials are used when geometric solutions, extremely smooth surfaces, clean lines and precise corners are required, but of course also for wavy surfaces and complicated applications.

Economical and precision machining of versatile materials requires powerful panel saws with special shaping cutters. One winning feature of the SECTOR 1255V is its high rigidity. This is ensured by the completely welded frame with self-supporting design. A high level of cutting precision and angularity is guaranteed.

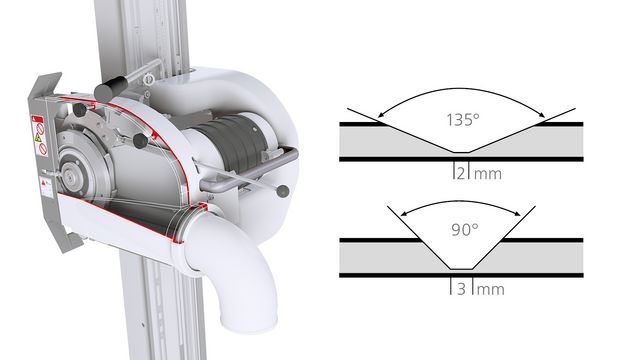

Grooving in two angle sizes 90° and 135°

The available shaping cutters for angled bending to 90° or 135° cut V-shaped or right-angled grooves on the rear side of the composite panels. The aluminum top sheet and part of the plastic core are left. The thinness of the remaining material allows edge bending. The shape of the groove automatically determines the bending radius.

Composite Material Package

  • Special pressure shoe with cutout for cutter and sensing roller.
  • Digital horizontal dimension display
  • Two additional longitudinal stops for vertical cut (additional longitudinal stops possible).
  • Adapted compensation weight for sawing unit.
  • Incl. HW circular saw blade, dia. 250 mm for composite materials instead of standard saw blade.

Single-company quality – from steel plate to finished machine

In house production of frames for vertical panel saws.

Up to 2200 tons of steel and aluminum are used in HOLZ-HER's own frame construction. A laser cutting unit with fully automatic charging optimizes cutting steel plates with thicknesses up to 25 mm. This ensures that HOLZ-HER can use the ideal material thickness for all construction parts where rigidity is relevant.

With a nominal pressing force of 400 tons, multiple hydraulic trimming presses ensure perfect component shape with automatic material thickness measurement and pressure control.

The individual parts are welded together very carefully. Optimally designed welding equipment ensures high quality consistency for your machine.

The completely welded frames are milled with high precision on a number of long-bed cutting machines. This ensures that all surfaces are optimally prepared for later attachment of guides and equipment.
