SECTOR 1260 automatic vertical panel saw: Fully Automatic for Maximum Cutting Quantity and Easy Operation
Perfect ergonomic design, absolute precision and angular accuracy are the convincing features of the SECTOR 1260 vertical panel cutting saws. This upright panel saw allows one-man operation from panel storage to finished, precisely cut section and is appreciated for its basic, solid design.
The SECTOR 1260 is the fully automatic panel saw from HOLZ-HER. It is distinguished by its automatic mode, allowing it to manage large cutting quantities in minimum time. After positioning the panel, it is only necessary to press a button to start the machine process. Rapid cutting cycles are guaranteed by its infinitely adjustable feed rate of up to 25 m/min.
The range of applications for HOLZ-HER circular panel saws can be extended as required with genuine HOLZ-HER accessories. For example with the HOLZ-HER patented Super Cut prescoring system. This system operates with two scoring blades to score laminated panels ensuring tear-free edge quality right down to one tenth of a millimeter. A further option is the professional cut optimization software, Opti-Base V-Cut for perfect optimization results through complete material utilization.
The SECTOR 1260 automatic offers an infinitely adjustable feed rate up to 25 m/min for automatic ...
1 plunge cuts,
2 sawing through (horizontal or vertical),
4 automatic return to the operator, ensuring high speed cutting cycles.
5 Optimized cycle: If the entire cutting length is not required, the automatic mode returns the sawing unit at an earlier time.
Cut optimization with Opti-Base V-Cut
Cut optimization – Step-by-step instructions for effective panel cutting
With the professional OptiBase V-Cut cutting optimization feature from HOLZ-HER, you always get the best optimization result thanks to perfect material utilization. Clearly arranged user surface and 10” touch screen for simple, quick operation and management of orders, material and parts lists. The label printer for HOLZ-HER machines, which is included in the package, ensures clear identification of parts.
The way to support cutting optimization
- The optimization software for vertical panel cutting saws means you can optimize your cutting plans effortlessly.
- Waste material is significantly reduced and professionally managed through labeling.
- The choice is yours – you can either import the cutting plans created in your office via network connection / USB or enter them directly on the touch screen.
- Perfect material utilization and maximum yield thanks to intelligent software.
- Importing parts lists from various branch programs (Cabinet Control, Imos, OSD, CSV interface, etc.)
- Writing parts lists in the office incl. Edging / Coverings / Oversize dimensions / Production sequence / etc.
- Printing labels with all known information such as: Data matrix / Com. / Dimensions / Edgings / Coverings / etc.
- Fast handling at machine, because optimization can be accomplished previously in the office and the monitor shows all data and work steps
- Remnants are managed and booked (remnant store also completely active)
- Programmable remnant store for panels and coverings
- Network connectivity (machine can be integrated into network so that all remnants are also known in the office and optimized results can be displayed directly on machine.)
- Plug to Play
Prescoring for precision cuts
SuperCut is the patented HOLZ-HER prescoring system. It provides ready-to-glue cuts with just one basic adjustment.
- Two carbide blades score the surface of coated panels exactly to the width of the saw blade.
- The circular saw blade then cuts the panel without chipping the hard, brittle or fibrous top layer.
- The result is a smooth edge for further processing.
- SuperCut can be adjusted easily on a dimension scale.
- SuperCut can be retrofitted at any time on all SECTOR panel saws.

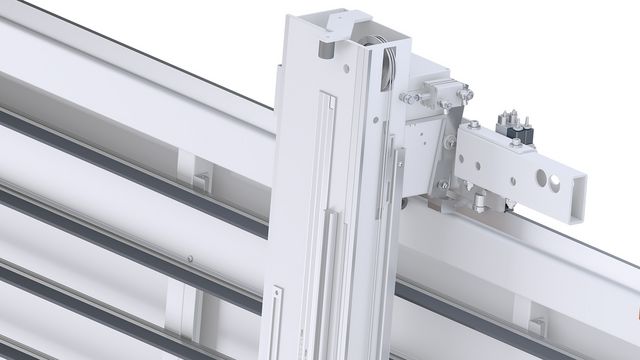

Top and bottom sawing beams
Top and bottom sawing beams with pneumatic arrest, can be operated from the control panel at the touch of a button. Including automatic interface detection for vertical cut.

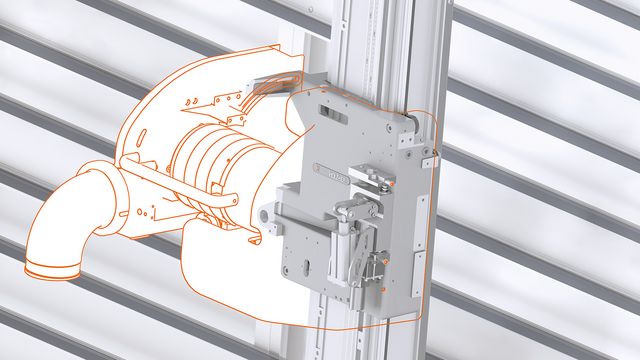

Sawing unit for horizontal cutting
Sawing unit including pneumatic arrest for horizontal cut and electrical fine adjustment of measurement directly on the control panel.
Digital longitudinal stop with fine adjustment
Digital dimension display for vertical cut, including fine adjustment of hardened linear guide (optional).
GeoMetric angle cutting attachment
The mobile angular cutting device allows angular cuts up to 45° to be completed easily. For this purpose simply clamp the angular cutting device to the saw and set the angle in degrees. Two adjustable vacuum units hold the panel in place. Then cutting can be accomplished in the vertical or horizontal direction. A simple conversion feature allows the angular cutting unit to be attached on the left or right side of the cut.
The strip stop ensures a uniform cut to the width of the workpiece. Once set - every cut is the same
Single-company quality – from steel plate to finished machine
In house production of frames for vertical panel saws.
Up to 2200 tons of steel and aluminum are used in HOLZ-HER's own frame construction. A laser cutting unit with fully automatic charging optimizes cutting steel plates with thicknesses up to 25 mm. This ensures that HOLZ-HER can use the ideal material thickness for all construction parts where rigidity is relevant.
With a nominal pressing force of 400 tons, multiple hydraulic trimming presses ensure perfect component shape with automatic material thickness measurement and pressure control.
The individual parts are welded together very carefully. Optimally designed welding equipment ensures high quality consistency for your machine.
The completely welded frames are milled with high precision on a number of long-bed cutting machines. This ensures that all surfaces are optimally prepared for later attachment of guides and equipment.
