HOLZ-HER TECTRA 6120 lift: The space-saving lift solution, including lifting table

The panel saw HOLZ-HER TECTRA lift with its massive lifting table is the solution for series production

The horizontal panel saw TECTRA 6120 lift from HOLZ-HER is the complete solution with solid lifting table for high throughput mass production. The low space requirement and enormously high supporting capacity of the TECTRA 6120 lift allow high speed processing at high material throughput rates using package cuts. This elevating table version from HOLZ-HER thus ensures optimum integration into existing production processes.

The new TECTRA 6120 pressure beam saw from HOLZ-HER is distinguished by its absolute cutting precision and comprehensive basic features. Uncomplicated transfer of data from conventional branch software or software from other suppliers is a further highlight of the TECTRA series, allowing implementation of custom concepts with short amortization times for handicraft and industrial businesses.

Prices
x

Different requirements - different prices

The price of a HOLZHER machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice
x

Personal advice – for higher productivity and greater efficiency

Together with your HOLZHER expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local HOLZHER expert will be happy to discuss all further details with you.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.

Here is what the HOLZ-HER TECTRA 6120 lift offers

Technical Details

Control Center

A perfectly designed workplace provides the basis for efficient, non-fatiguing work. With the 21.5" control terminal HOLZ-HER panel cutting saws satisfy all requirements placed by machine operators. The ergonomically adjustable rack offers space to position up to two printers, scanner, keyboard and mouse where they are located perfectly for the operator.

  • The control center with large multi-touch 21.5” full HD monitor with 16:9 format guarantees maximum clarity with real time 3D graphics and full graphic finalization help.
  • A cordless mouse and QWERTZ or QWERTY keyboard are provided to meet the requirements in the specific county.

The CUT CONTROL 2 control package

The powerful software package for large HOLZ-HER industrial saws

The high performance software package for HOLZ-HER industrial saws

The control is decisive for the power output of a state-of-the-art pressure beam saw. All HOLZ-HER panel cutting saws are equipped with our CUTCONTROL 2 and the preinstalled EASY-PLAN and OPTI-CUT software packages.

Everything at a glance:

  • The self-explanatory graphical user interface ensures that your employees can start operating the machine quickly and properly without any major training.
  • The optimized information display ensures maximum "clarity" (buttons and features not required are hidden).
  • EASY-PLAN optimization software preinstalled at the factory.
  • Individual jobs can be assigned a priority at any time, job programming parallel to cutting.
  • Graphic 3D user interface for intuitive operation and machine sequence functions for NC cutting.
  • Program-controlled measurement of reference dimensions when saw blade is changed.
  • Information display indicating running meters for main and prescoring saws.
  • Individual adaptation of function and parameter settings.
  • Operating states, service and maintenance intervals as well as separately programmed energy management are displayed in real time.

Solid air cushion tables

Luftbedüster Maschinentisch mit Luftpolstern vor und hinter der Sägelinie
Großflächiges Luftkissen, mit dem sich schwere Plattenpakete problemlos verschieben lassen
Seitlich bzw. frontal montierte Zuführrollen

High functionality – perfect ergonomics

The TECTRA meets the highest demands in terms of its technology and equipment.

  • Air cushions for the machine table protect the workpiece during handling. A powerful fan provide a large area air cushion, which allows heavy stacks of panels to be moved easily.
  • The air cushion tables never distort, even under heavy panel packages. Another optional feature includes long panel formats up to 2,400 mm.
  • The support tables can be moved for workpiece with small dimensions or to obtain additional space (optional).

Twin Press - Side alignment

The rubberized side pressure rollers in front of and behind the cutting line are pre-positioned by the optimization and lower directly in front of the workpiece. Even the last cut is neatly stopped at the angle ruler. This creates maximum performance when cutting the panel strips to length. The double side pressure is guided by the solid linear guides.

The sawing unit of the TECTRA series

Perfect power triangle at the cutting line for permanently ideal sawing performance
Automatic, infinitely variable cutting height adjustment for optimised saw blade projection and thus for a clean cutting edge.
Bidirectional grooving for a fast cycle blue

High Power – Extremely Smooth Operation

Optimized, torsionally rigid cast design, as well as use of linear guides guarantee perfect cutting results. Perfect power triangle at the cutting line for permanently ideal sawing performance thanks to sophisticated design of the sawing carriage guide and maintenance-free rack-and-pinion drive.

  • Main sawing motor - Equipped as standard feature with powerful 11 kW motor (7.5 kW on classic). For even more power the TECTRA can be equipped with an optional high power 15 kW drive (11 kW on classic).
  • Max. saw blade protrusion - 95 mm (82 mm on classic) for high power stack cuts or quick raw cuts
  • Sawing carriage - with a saw blade diameter of 380 mm (350 mm on classic), the automatic, infinite cutting height adjustment ensures optimum saw blade protrusion for cleanly cut edges.
  • Motor-driven groove height adjustment - adjustable groove depth from 0 - 30 mm programmable on control and optimization.
  • Bidirectional grooving program (FCM) Fast Cut Mode - Ensures extremely short cycle times for grooving, whereby a groove is also cut as the sawing carriage moves back (optional on classic).
  • Automatic cutting length limitation - A proximity-type optical feature recognizes the end of the workpiece - eliminating unnecessary sawing carriage travel, especially for manual cuts.
  • Optimized automatic cutting length feature - The sawing carriage is controlled by the optimization feature - the sawing carriage is prepositioned beneath the panel, the start and end of the cut are calculated, paths without cutting are traversed at maximum speed.
  • Electrically adjustable prescoring saw - Allows simple and perfect adjustment of the prescoring saw on the monitor, in the shortest possible time, with minimum effort.
  • High performance postforming unit (optional) - for tear-free cutting of postformed and other edges up to a panel thickness of 50 mm.
  • Quick-change clamping system for main and scoring saws - ensures precisely clamped saw blades and extremely short standstill times for changing saws.

Freely programmable rip fence

Werkstückspannzangen in schwimmender Ausführung

Stable, welded construction with precision, hardened linear guides ensure precise, smooth running. Direct rack-and-pinion drive and proximity-type sensor for absolute dimensions guarantee maximum positioning accuracy. Valid. Floating-type workpiece clamps compensate for tension in the panel stacks toward the top.

The 'power' workpiece clamps

Die schwimmend gelagerten Werkstückspanner gleichen Unebenheiten in den Platten/Paketen aus.
Für überfurnierter Teile sind optional gesteuerte Anschläge erhältlich
Die Spannzangen fahren in den ausgesparten Druckbalken ein.

Perfect hold - HOLZ-HER double-finger workpiece clamps

Three double-finger workpiece clamps in the stop area allow narrow strips to be cut simultaneously with maximum stability. The floating type clamps compensate for tension in the panel stack using a linear guide. For precise cutting on unveneered workpieces, optional controlled trimming stops are available.

Remnant cutting device for division without remnants. The clamps retract into the grooved pressure beam. Panels can be used completely during processing.

Remnant cutting device integrated into the pressure beam

Remnant cutting device

Remnant cutting device for division without remnants. The clamps retract into the grooved pressure beam. Panels can be used completely during processing.

Dust Control – for program-controlled evacuation

(1) The front evacuation flaps are active during transverse cutting.

(2) The rear evacuation flaps are active during longitudinal cutting.

The cutting position recognition feature optimally controls all evacuation openings in the pressure beam. This always ensures maximum evacuation power directly at the saw blade, keeping your machine table free at all times. Evacuation openings not required are closed automatically - can, however, be adapted manually on the control to ensure your machine table is always clean.

Solid lifting table as standard feature

Massive scissor lift table for high-throughput series production
Massive scissor lift table for high-throughput series production
Massive scissor lift table for high-throughput series production

The Lift Solution for Maximum Material Through-Put

Solid precision lifting table for high-capacity mass production. The small space requirement and enormously high supporting capacity enable high-speed processing at high material throughput rates using stack cuts. Select the suitable version for optimum integration into your production process.

  • Stable layout - consisting of heavy-duty angle and hollow sections - max. effective load 3,500 kg
  • Precise positioning, processing of panels with thicknesses up to 9 mm
  • High speed lifting / lowering cycles
  • Double light barriers provide absolute safety for personnel
  • For panel formats on the lifting table with length of up to 4,200 mm and width up to 2,500 mm

Optimization module EASY-PLAN

Die serienmäßig installierte Optimierungssoftware EASY-PLAN

EASY-PLAN – the name is the program

The EASY-PLAN optimization software installed as a standard feature provides all functions, such as:

  • Entry of material data and parts list data
  • Job summary
  • Cutting plan survey for optimized jobs (representation at one level)
  • Material-related result display in graphic form.
  • Display provides information on required material formats, panels and remaining formats per job.
  • Complete jobs can be reset and booked back into the parts list at any time.

The material data entry provides information on length, width and thickness of the material, quantity present in stock, turnability in consideration of grain pattern, material designation, type number and trimming. The parts list data includes the element number, position number, quantity, length and width.

Optimization module OPTI-CUT

OPTI-CUT dient zum Anlegen, Verwalten und Optimieren von Aufträgen.

OPTI-CUT – makes your work even easier

OPTI-CUT serves for laying out, managing and optimizing jobs. The integrated OPTI-CUT optimisation software can also be purchased as a combination package – with machine and office version (OPTI-BASE).

  • The software supplies current job information for NC cutting.
  • An additional module imports parts lists from user programs.
  • Simple configuration of all system settings
  • Material-related result display of optimized parts lists in graphic form
  • Layout and management of edging lists with predefined edging recommendation lists
  • Defined cutting length adaptation from the software reduces cycle times decisively.

Optimization module OPTI-PRO

Die Profi-Optimierung im Komplettpaket mit einer Vielzahl von zusätzlichen Modulen.

OPTI-PRO – premium optimization

The professional optimization in one complete package with a variety of additional modules. This optional optimization package for sawing software is equipped for high speed data input as well as simple transfer of cutting data from branch or ERP programs via CSV interface. For example, the OPTI-PRO can calculate cutting times and take over edging material management for you. Naturally, the block part module also allows representation of furniture fronts. Other high performance features include:

  • Job management
  • Material and coating management
  • Data migration
  • Configuration
  • Display of results
  • Material booking
  • Edging and grooving entries
  • Use of cuts
  • Block part optimization
  • Edging calculation, data migration
  • Export of all data
  • Cutting time calculation
  • Label printout in office
  • Filler parts
  • Bar optimization
  • Collective jobs
  • Second license

Technical Details

Ein durchgängiger Maschinenverbund erlaubt Ihnen eine hoch effiziente Fertigung

Maximum efficiency with Holz-Her machine networking

HOLZ-HER realizes your production ideas within 20 minutes from the first mouse click to finished furniture with seamless machine networking.

Learn more


Der ECO Mode hilft dabei Strom und Energie zu sparen.

Energy savings made easy

The intelligent ECO MODE energy management for HOLZ-HER pressure beam saws not only helps preserve our environment - it also saves you money.

Learn more


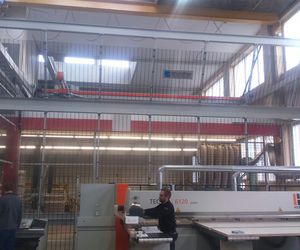

References


Further information

Downloads

Simple, fast and sustainable: more details in a downloadable PDF document.

Brochure TECTRA series (PDF, 3 MB)

Technical data

Open table
